The Brain's Operating System: Understanding Neural Circuitry

Friday 30 May 2025

Every thought you have, every movement you make, every memory you recall - all emerge from the intricate network of neurons in your brain. Understanding this neural circuitry is critical for developing new approaches to treating brain disorders and enhancing brain function.

In this post, we'll explore the fundamental operating system of the brain: how neurons communicate, how networks form, and what happens when these systems malfunction. Understanding these basics provides essential context for understanding innovations in neuromodulation.

The Neuron: The Brain's Basic Processing Unit

The human brain contains approximately 86 billion neurons, each capable of forming thousands of connections with other neurons. These cells are the fundamental computational units of the brain, receiving, processing, and transmitting information through electrical and chemical signals.

Unlike most cells in your body, neurons have a specialized structure optimized for communication:

Cell body (soma): Houses the nucleus and maintains the cell's vital functions
Dendrites: Branch-like structures that receive incoming signals from other neurons
Axon: A long projection that transmits signals to other neurons
Axon terminals: Specialized endpoints of axons that contain the cellular machinery for releasing neurotransmitters
Synapses: Functional connection points where information transfers between neurons, including the axon terminal, synaptic cleft, and receiving neuron's receptors

At rest, neurons maintain a negative electrical charge inside the cell compared to outside, creating what's called a resting membrane potential. This electrical gradient is maintained by ion channels that control the flow of charged particles (primarily sodium, potassium, and chloride) across the cell membrane.

Neurons also rely on support from glial cells, which help protect, maintain, and regulate the brain's signaling environment.

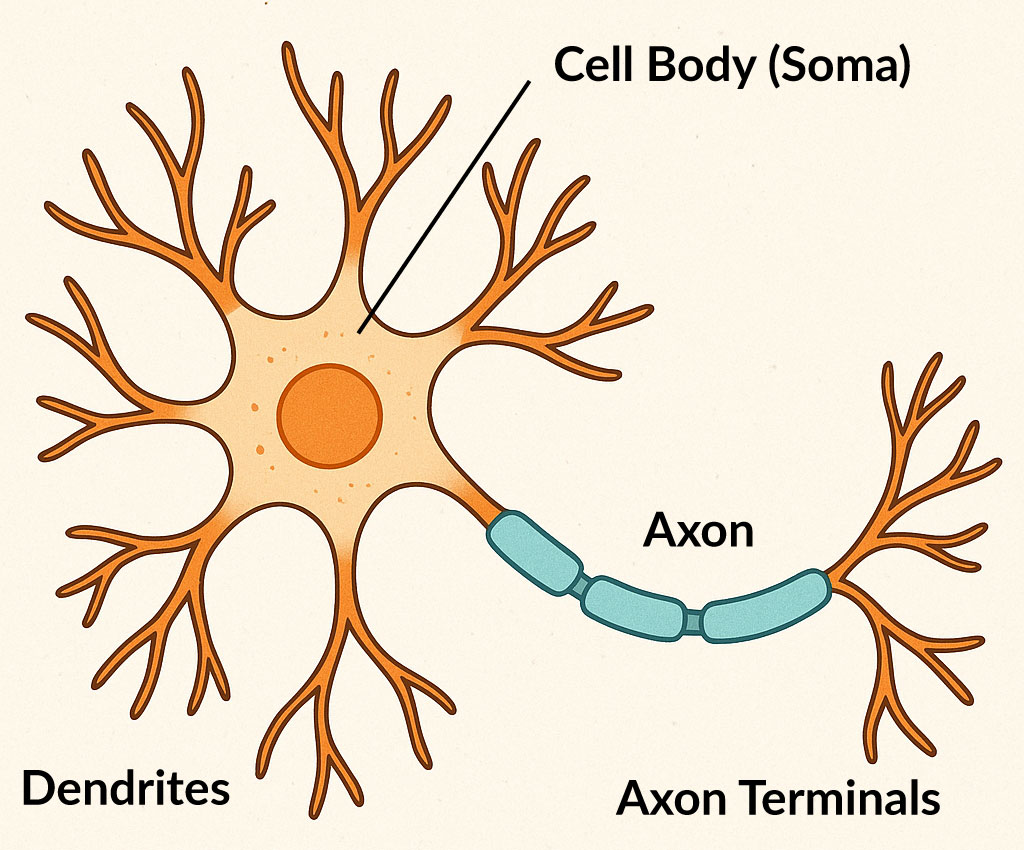

The basic structure of a neuron, showing the specialized components that enable neural communication. The cell body houses the nucleus and cellular machinery, while dendrites receive incoming signals from other neurons. The single axon transmits outgoing signals, often branching to communicate with multiple target cells simultaneously via the axon terminals.

Information Flow: Action Potentials and Synaptic Transmission

When a neuron receives enough input to reach a critical threshold, it generates an action potential - a rapid, all-or-nothing electrical impulse that travels down the axon to communicate with other neurons. This process operates on a binary principle - the neuron either fires completely or not at all. The strength of the signal doesn't increase with stronger stimulation; instead, the frequency of firing changes.

Think of it like a light switch that can only be on or off, but can be flicked on and off at different rates to convey different information.

Once the electrical signal reaches the end of the axon, it triggers the release of chemical messengers called neurotransmitters. These molecules cross the tiny gap between neurons (the synaptic cleft) and bind to receptors on the receiving neuron. Depending on the specific neurotransmitters and receptors involved, this binding can either make the receiving neuron more likely to fire (excitation) or less likely to fire (inhibition).

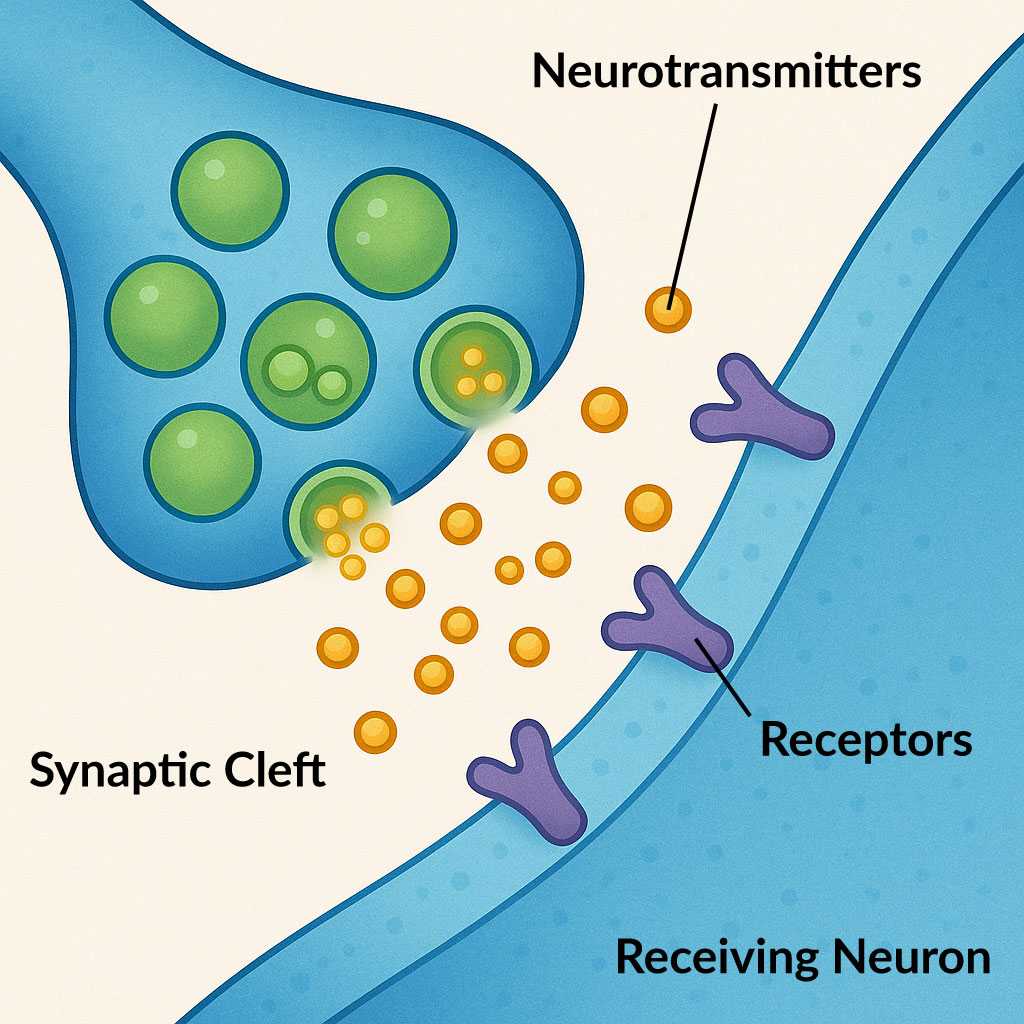

Synaptic transmission in action. When an electrical signal reaches the axon terminal, it triggers the release of neurotransmitter molecules from storage vesicles. These chemical messengers cross the synaptic cleft and bind to receptors on the receiving neuron, converting the chemical signal back into electrical activity in the postsynaptic cell.

The Critical Balance: Excitation and Inhibition

The brain maintains a delicate balance between excitatory and inhibitory signals - a fundamental principle that underlies healthy neural function. This balance can be thought of as a system of accelerators and brakes:

Excitatory neurons (primarily using the neurotransmitter glutamate) increase the likelihood that connected neurons will fire, driving activity forward
Inhibitory neurons (primarily using the neurotransmitter GABA) decrease the likelihood that connected neurons will fire, providing crucial control and refinement

In a healthy brain, this balance ensures that neural activity remains within an optimal range - neither too high (which could lead to seizures) nor too low (which could impair function). Inhibitory circuits are particularly important for:

Preventing runaway excitation
Sharpening the contrast between relevant and irrelevant information
Coordinating the timing of neural activity
Enabling precise neural computations

Interestingly, many neural circuits have more inhibitory connections than excitatory ones, highlighting the critical importance of restraint in neural processing.

The critical balance between excitation and inhibition that maintains healthy neural function. The central neuron receives both excitatory inputs (green arrows) that promote firing and inhibitory inputs (red arrows) that suppress activity. This balance produces stable neural activity (center), while excessive excitation leads to hyperactivity (left pattern) and excessive inhibition results in diminished function (right pattern).

From Neurons to Networks: Building Functional Circuits

Individual neurons don't operate in isolation - they form complex circuits and networks that process specific types of information. The brain organizes these networks into both:

Local circuits: Groups of neurons in close proximity that process similar information
Long-range networks: Connections between distant brain regions that integrate different types of information

These networks employ several common organizational principles:

Convergence: Multiple neurons send signals to a single neuron, allowing integration of different inputs
Divergence: One neuron connects to many others, broadcasting information widely
Feedback loops: Circuits where information flows back to earlier processing stages, allowing for error correction and learning
Lateral inhibition: Neurons inhibit their neighbors, enhancing contrast between signals

The combination of these principles creates remarkably adaptable and efficient processing systems. For example, when you recognize a face, visual information travels through multiple processing stages - from simple edge detection to increasingly complex feature recognition - before being integrated with emotional and memory systems that give that face personal meaning.

Plasticity: The Brain's Ability to Change

Perhaps the most remarkable feature of neural circuits is their ability to change through experience - a property known as neuroplasticity. This adaptability occurs through several mechanisms:

Synaptic strengthening: Connections between frequently co-activated neurons become stronger
Synaptic weakening: Unused connections weaken and may be eliminated
Formation of new connections: New synapses form in response to learning and experience
Homeostatic plasticity: A mechanism by which neurons adjust their excitability or synaptic strength to stabilize activity levels and prevent networks from becoming overly active or inactive

These changes allow the brain to learn from experience, adapt to changing environments, and even partially recover from injury by reorganizing neural circuits. Plasticity is most pronounced during early development but continues throughout life, though at a reduced rate with aging.

When Circuits Malfunction: Understanding Brain Disorders

Many neurological and psychiatric conditions can be understood as disruptions in the normal function of neural circuits. These disruptions can occur at multiple levels:

Cellular level: Dysfunction in ion channels, neurotransmitter systems, or cellular metabolism
Circuit level: Imbalances between excitation and inhibition or disrupted communication between regions
Network level: Abnormal patterns of connectivity between brain areas

For example:

Epilepsy often involves excessive excitation or insufficient inhibition, leading to uncontrolled neural firing
Parkinson's disease results from the loss of dopamine-producing neurons, disrupting circuits that control movement
Depression involves dysfunction in circuits related to mood regulation, reward processing, and stress response
Alzheimer's disease progressively damages connections between neurons, degrading memory networks

Understanding these disorders in terms of circuit dysfunction has led to new approaches for treatment, including targeted neuromodulation techniques that aim to restore healthy patterns of neural activity.

Looking Forward: Circuit-Based Approaches to Brain Health

As our understanding of neural circuitry advances, new possibilities emerge for treating brain disorders by directly modulating circuit function. These approaches include:

Pharmacological treatments that target specific neurotransmitter systems
Electrical stimulation delivered directly to specific brain regions
Magnetic stimulation that induces electrical currents in neural tissue
Ultrasound stimulation that can precisely target deep brain structures

Each of these modalities has unique capabilities for interacting with neural circuits, which we'll explore in future posts. Understanding how these technologies interact with the brain's natural operating system is crucial for developing effective treatments that can restore healthy circuit function in various neurological and psychiatric conditions.

By focusing on the fundamental principles of neural communication and network organization, we gain valuable insights that guide the development of neuromodulation technologies - potentially offering new options for patients whose conditions haven't responded to conventional treatments.

This post is the first in a series exploring the intersection of neuroscience and neuromodulation technologies. In upcoming posts, we'll examine different approaches to brain stimulation and how they interact with neural circuits.
